Description

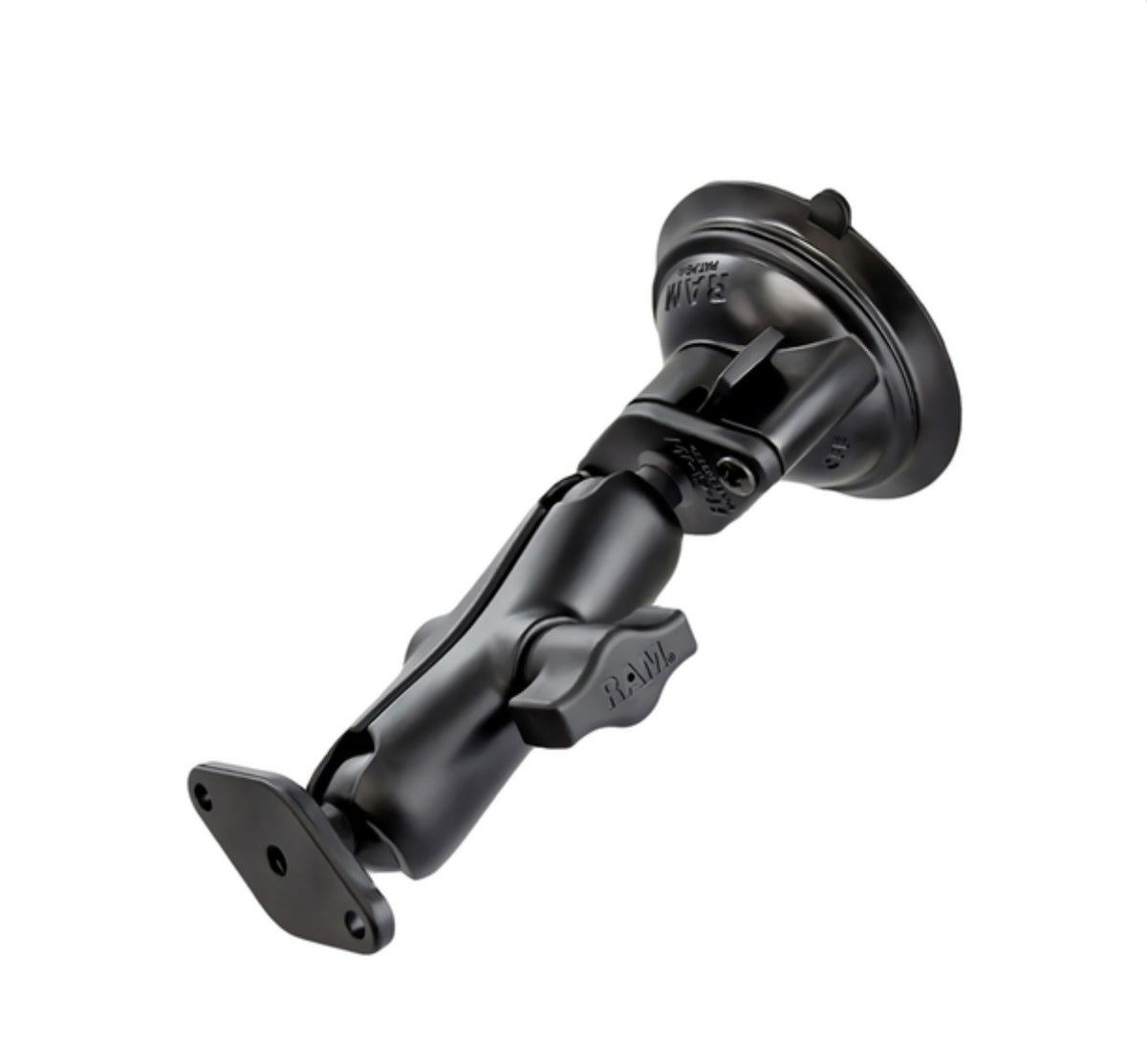

RAM® Twist-Lock™ Suction Cup Double Ball Mount
The RAM-B-166U consists of a 3.3" diameter suction cup twist lock base, medium length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles.
Simply choose and add a Ram cradle for your device for a complete mounting solution.
KEY FEATURES
-
RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
-
Includes B size medium length RAM® double socket arm and diamond bases with B size 1" rubber balls; ball and socket technology allows for near-infinite adjustability
-
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
SPECIFICATIONS
|
HARDWARE INCLUDED:
|
Assembly Hardware
|
|
PRODUCT DIMENSIONS:
|
Overall Height: 6.69"
|
|
SUCTION SIZE:
|
3.3" Diameter
|
|
SOCKET-TO-SOCKET LENGTH:
|
3"
|
|
HOLE PATTERN:
|
2-Hole AMPS: 1.912"
|
|
PLATE SIZE:
|
2.43" x 1.31"
|
|
BALL SIZE:
|
B Size (1")
|
|
WEIGHT CAPACITY:
|
Standard Use: 907g
Heavy-Duty Use: 453g |
|
MATERIALS:
|
Marine-grade aluminum
High Strength Composite
|
|
PACKAGING TYPE:
|
Poly Bag
|
|
WEIGHT:
|
272g
|
